2M高清驾驶员监控摄像头-OV2311+FH8332+MAX96717F-SPEC
文档内容
STK-HD-CAM-OV2311-SPEC

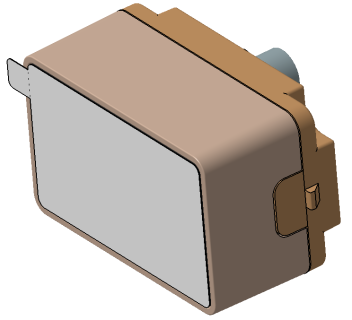

**2 **MP DMS CAM(摄像头)
**基本描述/**General **Description **
合肥晟泰克车载摄像头采用高动态车规图像传感器,配合主流串行传输芯片,使得该模组具有高可靠性能, 该模组具有广泛适用性，能适配不同的****SOC 平台。
Vehicle camera module of Hefei Softec adopts high dynamic vehicle gauge image sensor, with mainstream serial transmission chip, making the module has high reliability performance, the module has a wide range of applicability, can be adapted to different SOC platforms.
**特点/**Features
● 车规高性能 /High Performance Automotive Grade;
● 支持识别人脸等多功能/ Support face recognition and other unctions
应用**/**Application
● 驾驶员监控 / Driver monitoring
● 眼球追踪 / eyeball tracking
● 面部识别 / facial recognition

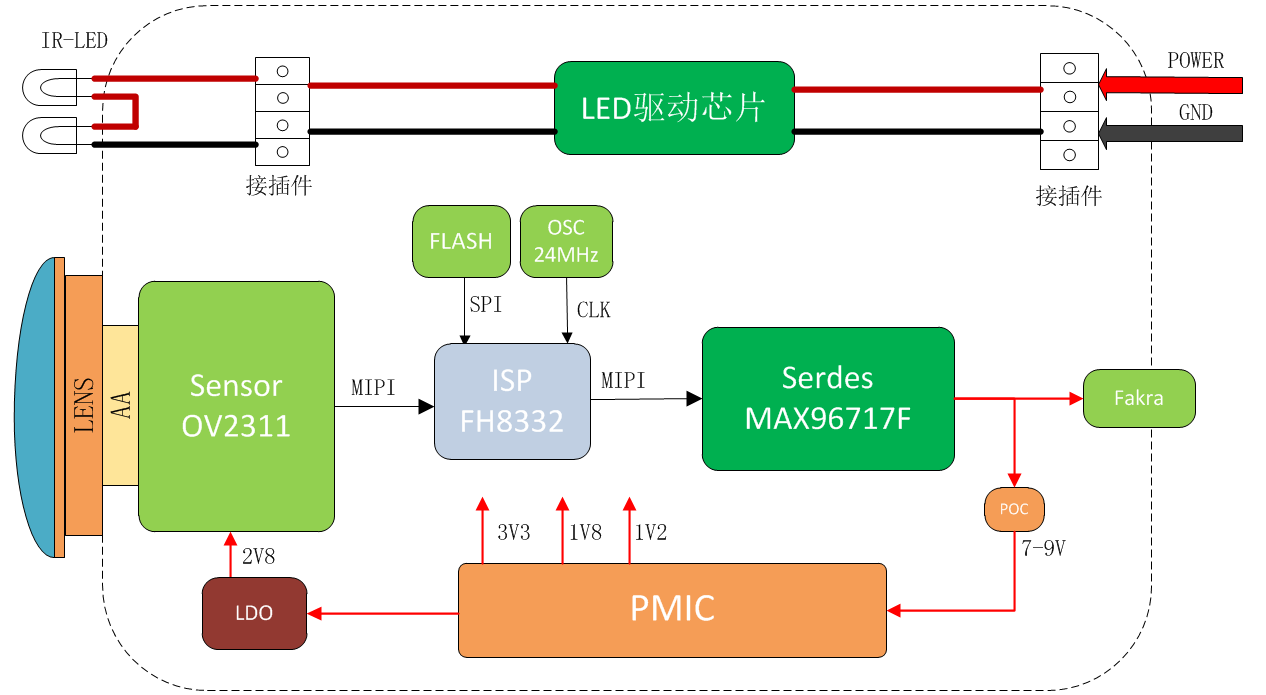

**硬件框图/**Hardware block diagram
关键参数**/**** KEY PARAMETERS**
| 序号 | Sensor参数 | OV OV02311 |
|---|---|---|
| 1 | Active Pixels(有效像素) | 2MP |
| 2 | Image Size(图像尺寸) | 1/2.9-inch CMOS |
| 3 | Shutter Type(曝光模式) | Rolling Shutter 卷帘快门 |
| 4 | Output Pixels(输出像素) | 1600*1300 |
| 5 | Pixel Size(像素尺寸) | 3um*3um |
| 6 | ISP参数 | FH8322 |
| 7 | Frame Rate(帧率) | 30fps |
| 8 | Output data(输出信号格式) | YUV422 |
| 9 | Lens参数 | CM207(宇瞳) |
| 10 | Lens Type(镜头结构) | 1G2P+IR |
| 11 | F/No. | 2.06±5% |
| 12 | EFL | 5.21±5% |
| 13 | F.O.V(Horizontal/Vertical) | H:50°±3° V:41.1°±3° |
| 14 | OP Distortion(OP畸变) | -3% |
| 15 | Relative Illumination(相对照度) | 50.2%±5%@φ6.18 |
| 16 | Focusing Distance(调焦距离，物距) | 1000mm(按应用的物距) |
| 17 | Depth of Field(景深范围) | 688mm-1830mm |
| 18 | 整体模组 | 参数 |
| 19 | Dimensions(尺寸) | L: 44mm, W:28mm, H:37mm |
| 20 | Weight(重量) | ＜50g |
| 21 | Connector(连接器) | 电连-818032090 |
| 22 | Serializer(串行器) | MAXIM MAX96717F |
| 23 | Power Supply(工作电压) | 7-9V |
| 24 | Current(工作电流) | ＜100mA |
| 25 | Camera Interface(摄像头接口) | LVDS |
| 26 | Optical Axis Precision(光轴精度) | X:±5 Pixel,Y: ±5 Pixel; |
| 27 | Startup Time(启动时间) | ≤500ms |
| 28 | Operating temperature(工作温度) | -40℃~85℃ |
| 29 | Storage temperature(存储温度) | -40℃~95℃ |
| 30 | IP Grade(防护等级) | 模组本体IP52 |
| 31 | MTF(清晰度) | 中心视场：MTF50P≥0.55 0.7视场：MTF50P≥0.38 |
| 32 | Low Light(最低照度) | 0 Lux (IR pattern) |
| 33 | SNR(信噪比) | 40 dB |

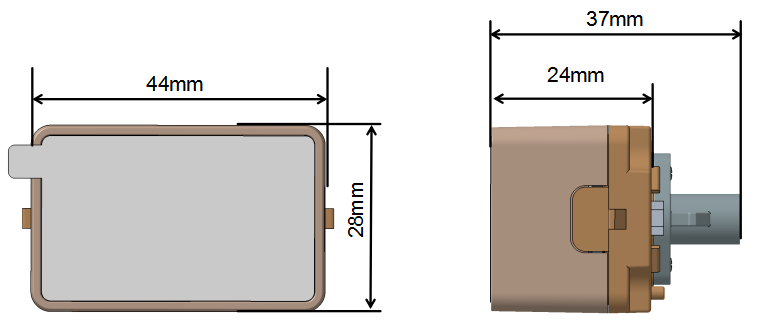

附件Ⅰ：摄像头本体尺寸示意图(单位：mm)
