2.5M高清后视&周视-OX01C10-金属方案-SPEC
文档内容

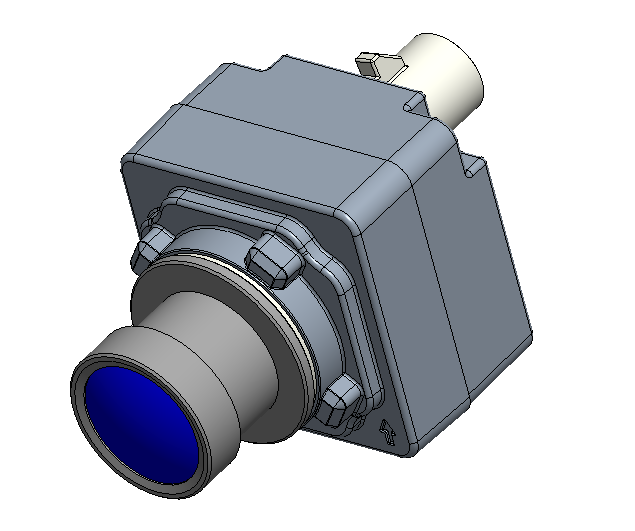

STK-HD-CAM-OX01C10-SPEC
2.5MP CAM**(后视****/**周视摄像头)
**基本描述/**General **Description **
合肥晟泰克车载摄像头采用高动态车规图像传感器,配合主流串行传输芯片,使得该模组具有高可靠性能, 该模组具有广泛适用性，能适配不同的****SOC 平台。
Vehicle camera module of Hefei Softec adopts high dynamic vehicle gauge image sensor, with mainstream serial transmission chip, making the module has high reliability performance, the module has a wide range of applicability, can be adapted to different SOC platforms.
**特点/**Features
● 车规高性能 /High Performance Automotive Grade;
● 传感器高动态范围/Advanced On−Sensor HDR;
● 支持多相机同步/Multi−Camera Synchronization Support;
● 多款不同焦距镜头可选/Support different focal length lens;
应用**/**Application
车载后视 /Rear View Camera
车载侧视 /Vehicle side view
高级辅助驾驶和视觉融合/ADAS + Viewing Fusion
高动态应用/High Dynamic Range Imaging
**硬件框图/**Hardware block diagram

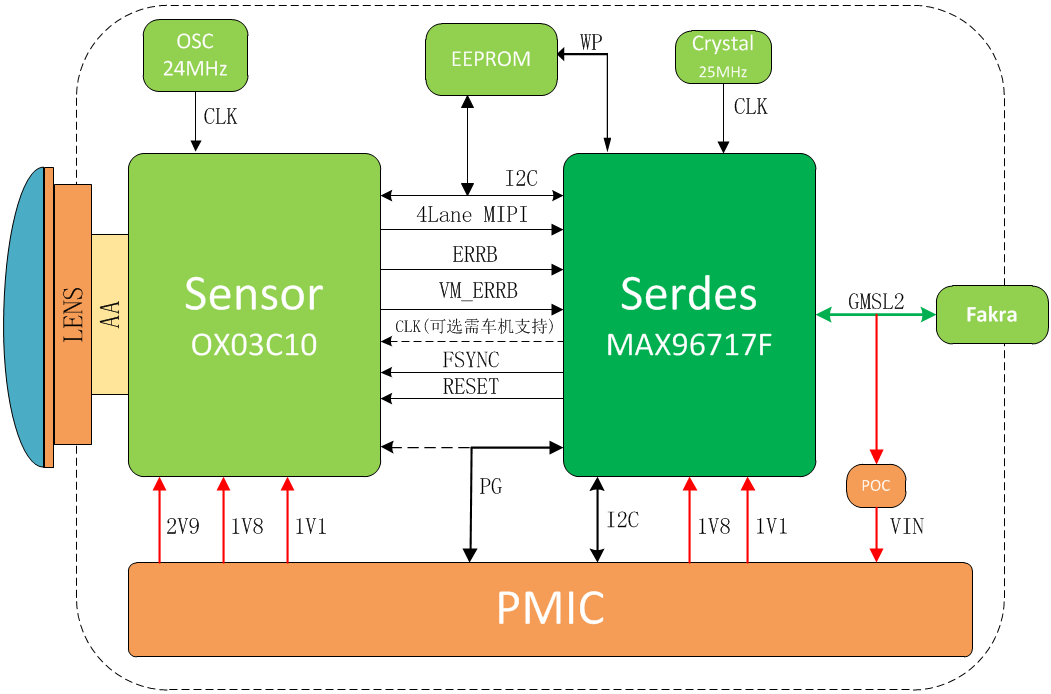

关键参数**/**** KEY PARAMETERS**
| 序号 | Sensor参数 | OV OX01C10 |
|---|---|---|
| 1 | Active Pixels(有效像素) | 2.5MP |
| 2 | Image Size(图像尺寸) | 1/2.6-inch CMOS |
| 3 | Shutter Type(曝光模式) | Rolling Shutter 卷帘快门 |
| 4 | Output Pixels(输出像素) | 1920*1280 |
| 5 | Pixel Size(像素尺寸) | 3um*3um |
| 6 | ISP参数 | 集成至Sensor |
| 7 | Frame Rate(帧率) | 30fps |
| 8 | Mirror(镜像) | 内置 |
| 9 | Output data(输出信号格式) | RAW |
| 10 | Lens参数 | 后视：LC-C80-87A(信华) |
| 11 | Lens Type(镜头结构) | 6G+IR |
| 12 | F/No. | 1.60±5% |
| 13 | E.F.L | 5.83±5% |
| 14 | F.O.V(Horizontal/Vertical) | H:60°±3°,V:47°±3° |
| 15 | OP Distortion(OP畸变) | -27.5±3% (@Φ7.38mm) |
| 16 | Relative Illumination(相对照度) | 65±5% (@Φ7.38mm) |
| 17 | Focusing Distance(调焦距离，物距) | 500mm(按应用的物距) |
| 18 | Depth of Field(景深范围) | 50mm-infinity |
| 19 | 整体模组 | 参数 |
| 20 | Dimensions(尺寸) | L: 25mm, W:25mm, H:45mm |
| 21 | Weight(重量) | ＜50g |
| 22 | Connector(连接器) | 电连-818010624 |
| 23 | Serializer(串行器) | MAXIM MAX96717F |
| 24 | Power Supply(工作电压) | 7-9V |
| 25 | Current(工作电流) | ＜200mA |
| 26 | Camera Interface(摄像头接口) | LVDS |
| 27 | Optical Axis Precision(光轴精度) | X:±5 Pixel,Y: ±5 Pixel; |
| 28 | Startup Time(启动时间) | ≤500ms |
| 29 | Operating temperature(工作温度) | -40℃~85℃ |
| 30 | Storage temperature(存储温度) | -40℃~95℃ |
| 31 | IP Grade(防护等级) | IP67，镜头处IP69 |
| 32 | MTF(清晰度) | 中心视场：＞0.55@Ny/2 0.7视场：＞0.38@Ny/2 |
| 33 | Low Light(最低照度) | 1Lux |
| 34 | SNR(信噪比) | 41.6dB |
| 35 | HDR Range(动态范围) | 140 dB HDR4 (DCG+SPD+VS) 120 dB HDR3 (DCG +VS) |
| 36 | 固件点亮配置 | 参数 |
| 37 | VSYNC极性 | TBD |
| 38 | 主从模式 | Slave |
| 39 | 数据有效位 | 低八位 |
| 40 | I2C地址 | 0X6C |
| 41 | 点亮配置 | TBD |

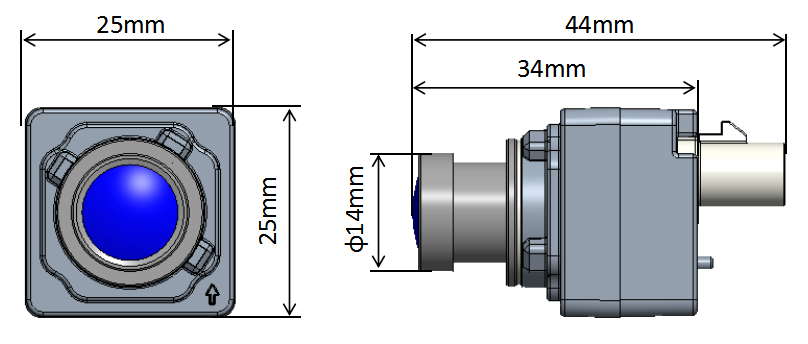

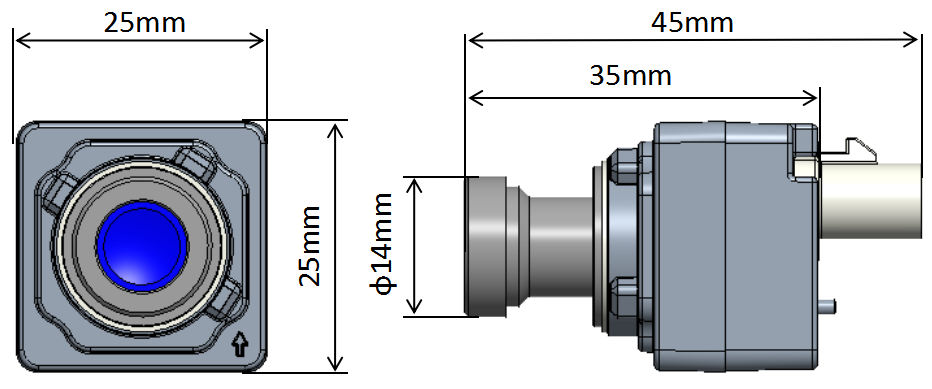

附件Ⅰ：摄像头本体尺寸示意图(单位：mm)
周视
后视
